Combine Meter Control Co.,LTD

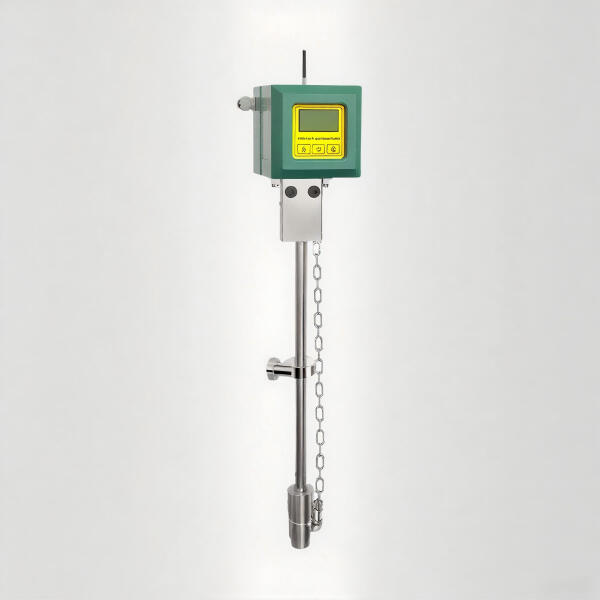

Insertion Electromagnetic
Flow Meter
1.Integrated or split style design (optional) 2.Suit for pipeline size DN100mm--DN8000mm 3. Non-stop water supply ,easy installation 4.High accuracy with 1.5% ,repeatability>0.5% 5. IP67/IP68 protection level ,stable performance 6.Three styles power supply mode(3.6V DC lithium battery,24V DC,220V 50HZ,11OV 60HZ) 7. 4--20 mA anolog input 8.measure range 0.2--10m/s 9. 6 styles （RS485+Pulse,2G,3G,4G,NB-IOT,LORA)output signal to choose 10. Application scenarios for the water treatment, food industry, pharmaceutical, petrochemical, paper mill, chemical monitoring etc. 11.Supply OEM/ODM service.

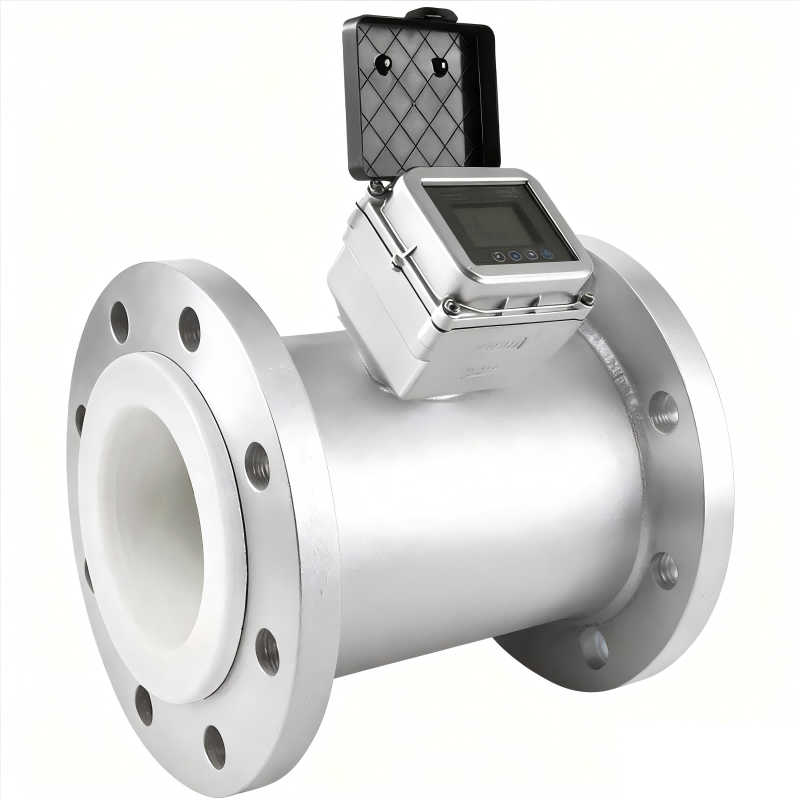

Pipeline Electromagnetic
Flow Meter
1.Suit for pipeline size DN3mm--DN3000mm 2.Integrated and split style can be choose 3.Nominal Pressure: 0.6-1.6Mpa (2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa) 4.Flange connect 5.pipeline material : carbon steel, stainless steel 6. lining material :PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA 7.Electrode materials :316L,JS,HB,HC,TI,TA,PL ,WC 8.IP 68 protection level ,Long use life 9.Power supply : 3.6V DC lithium,24V DC,220V 50HZ,110V 60HZ 10.Output :RS485+Pulse,2G,3G,4G,NB-IOT 11. widely used in water treatment, food industry, pharmaceutical, petrochemical, paper mill, chemical monitoring etc.

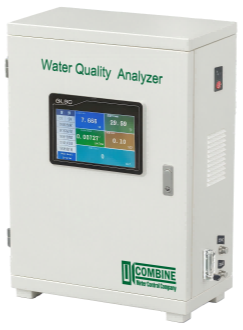

Multi-parameter Water Quality Analyzer
1.Stainless steel or ABS material cabinet 2. measure multi parameters(PH,TCL,ORP,NTU,TDSDO,etc) 3.Long life use electrode (6 months calibration one time ),electrode method,no Reagent consumption ， lower use cost 4.easy to operation converter 4.Supply OEM/ODM service

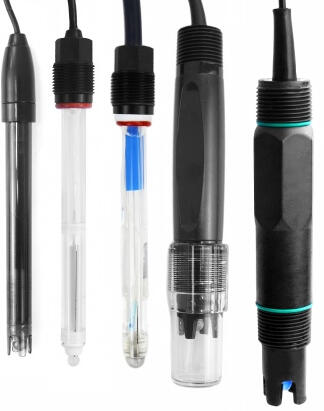

Water quality test sensors
51.PH sensor: range 0-14PH,accuracy:0.2% 2.ORP sensor: range -2000---+2000mv,accuracy:±15mv 3.TDS sensor:range 0--10000ppm,accracy:±2%FS 4.EC sensor: range 0... 2000uS/cm,accracy :±2%FS. 5.DO sensor:range 0...20mg/L,accuracy :±2%FS 6.Chlorine sensor : range0...20ppm, accuracy :±2%FS. more sensors are optional .
